◼Product parameters
● Product name: Gallium Nitride (GaN fast charge)
●Output power: 30W / 35W
● Working frequency: 50-60Hz
●Input voltage: 100-240V AC
● Product size: 34*33*38.5mm
● Wiring requirements: Type-C to Type-C cable with EMARK can be configured according to customer needs
● This charger has passed CCC, CE, FCC
● Typical output:
model | Output parameters | Output Power |
CM30C | USB-C 30W Max 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A | 30W |
CM30AC | USB-C (PD30W) 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.5A USB-A (QC18W) 5V/3A,9V/2A,12V/1.5A USB-A+C (18W) 5V/3.6A | |
CM35C | USB-C 30W Max 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.75A | 35W |
CM35AC | USB-C (PD35W) 5V/3A,9V/3A,12V/2.5A,15V/2A,20V/1.75A USB-A (QC18W) 5V/3A,9V/2A,12V/1.5A USB-A+C (18W) 5V/3.6A |
◼Product features
● Protection function : Overcurrent, overvoltage, short circuit, and overtemperature protection circuits
● Energy efficiency standards : Comply with the new version of energy efficiency 6 standards
● Operating temperature : -10～+25℃, normal operation
● Operating humidity : 20~90%RH, no condensation
● Withstand voltage: I/PO/P: 3.0KVAC
● Insulation resistance: I/PO/P: 50M Ohms/500VDC/25℃/70%RH
● Electromagnetic compatibility radiation: EN55032 CLASS B
● Electromagnetic compatibility immunity: EN55032 CLASS B
● Application scenarios : mobile phones/tablets/routers/projectors/smart speakers/humidifiers, etc.
◼More advantages
Gallium nitride (GaN) is a new type of semiconductor material with the characteristics of high voltage resistance, high frequency and stable performance.
Under the same power, it is smaller in size and lighter in weight, and the transmission speed is 3 times that of ordinary chargers.
Apply the latest generation of EMC temperature control technology to dissipate heat faster.
PD protocol and PPS protocol output standards
Wall plug ClassII multi-protocol fast charging source

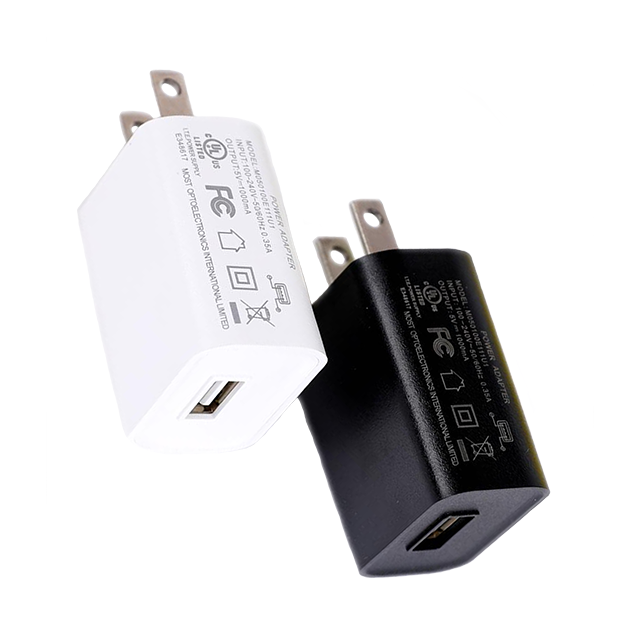

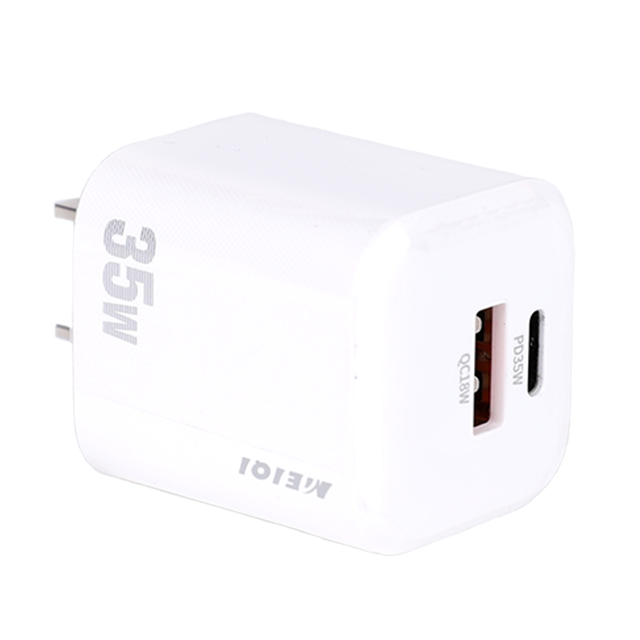

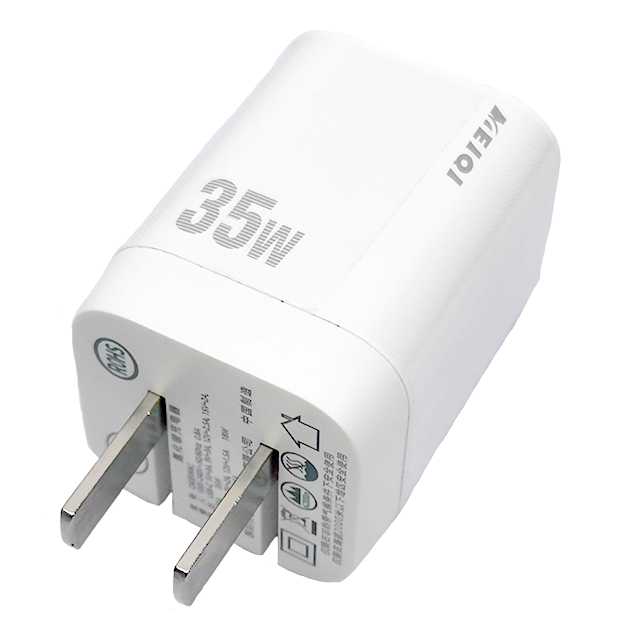

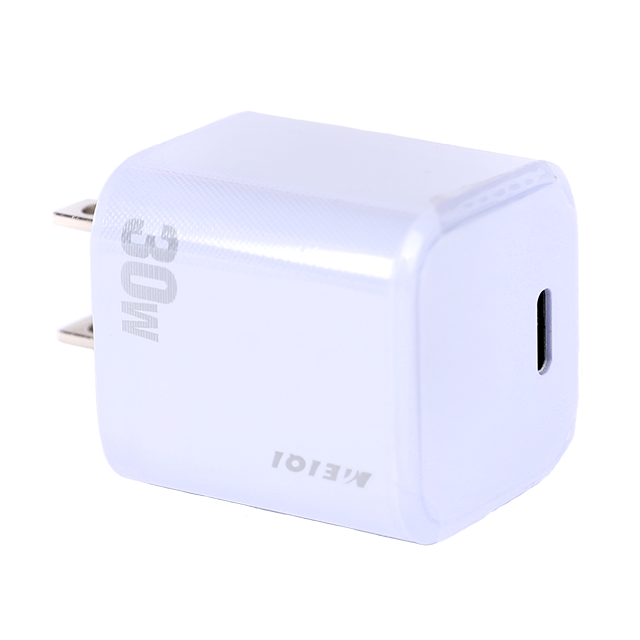

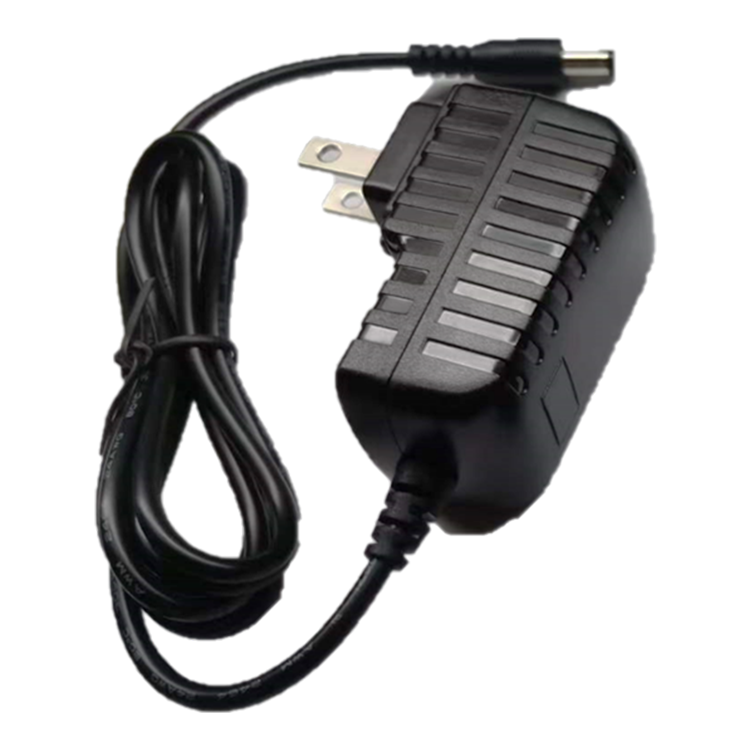

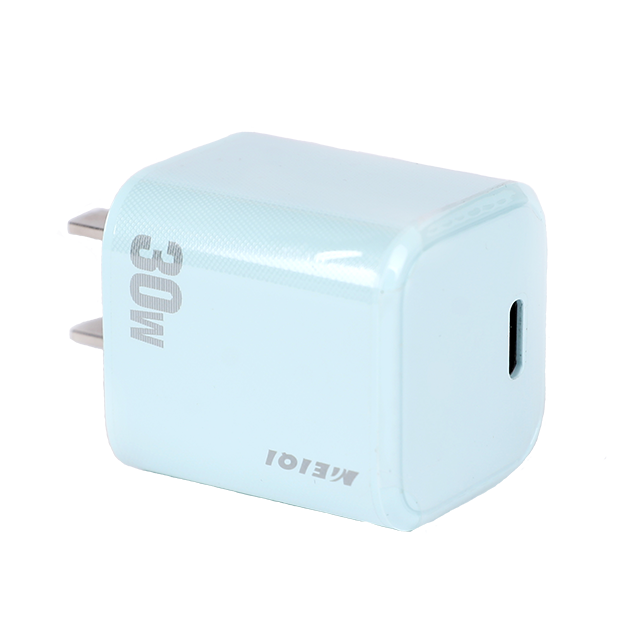

◼Product display
For more questions, please contact customer service.
