24W-72W

◼Product parameters



● Product model: M120500P911G

●Output voltage: 12V DC

●Output current: 5000mA

● Working frequency: 50-60Hz

●Input voltage: 100-240V AC

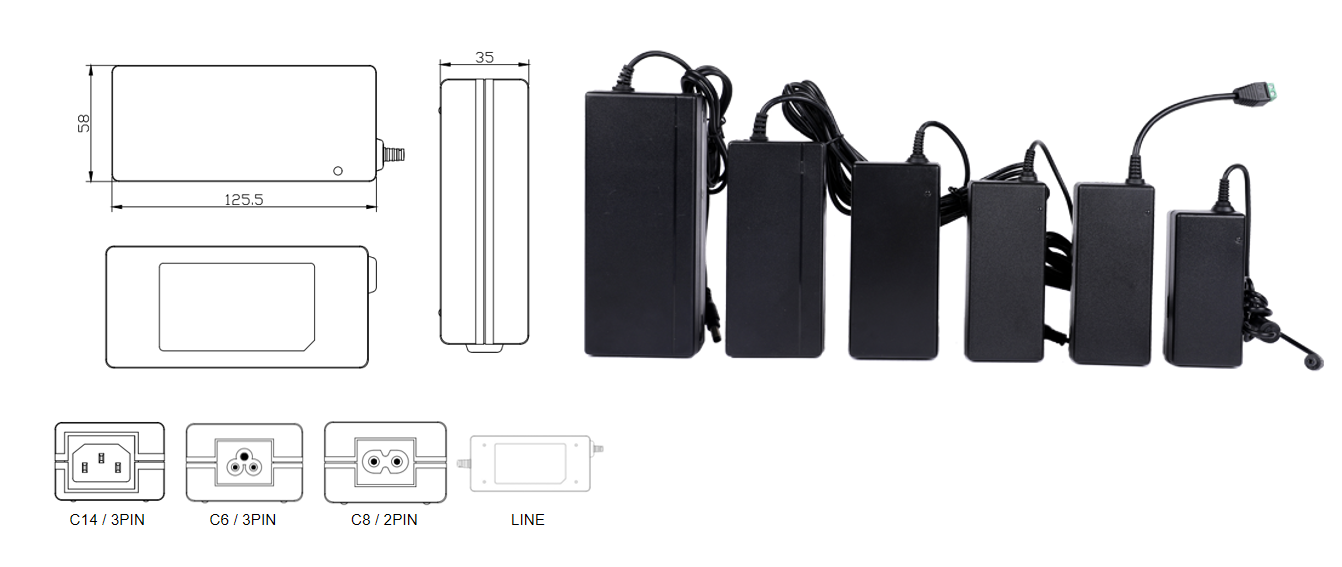

● Product size: 125.5*58*35mm

● Work efficiency: Meet DOE VI, ERP VI

●Input jack: Pin suffix-C14, Plum blossom suffix-C6, Eight suffix-C8, both ends of the line-Line

● This power adapter has passed CCC, CE, FCC, KC, UL, CB, UKCA


◼Product reliability



● Insulation resistance: DC500V input between AC input and DC output, minimum insulation resistance 100MΩ

● Protection: Set up overcurrent, overvoltage, short circuit, and overtemperature protection circuits

● ESD: Contact discharge ±2KV, air discharge ±4KV, no damage to the product

● Aging: Test the product with rated input and rated load current for 4 hours, and the product is not damaged.

● High voltage: All products have passed high voltage testing before leaving the factory.

● Temperature rise: Test the surface temperature with rated input and rated load. The temperature rise of the shell surface meets safety standards.

● Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test

● Drop test: Dropped from 1 meter onto a wooden board, once on each side. The product has no mechanical damage or electrical performance damage.

● MTBF (life): When tested at full load at room temperature of 25°C, the product life is more than 50,000 hours

●Lightning strike: within ±1KV, the product is not damaged

● Advantages: The shell is made of PC fireproof material, selected brand components, the production process adopts industry-leading technology, professionalism penetrates into every detail, fully complies with ROHS environmental standards, has good performance and high temperature resistance




◼Socket selection

24W-72W(Figure 1)

If you need to configure an AC line, please inform customer service.




◼DC head selection

72W-150W(Figure 1)

 The space is limited, please contact customer service for more information.


◼Typical output series


Model one:

Input parameters: AC 100-240V (90-264V), 50/60HZ , 1.0A

Output parameters: DC 4.5-30V, 100-5000mA , 42W Max

Overall dimensions: 99*46*33mm

Safety certification: CCC, CE, KC, FCC




The output voltage

Output current

Product number

12V

2000mA

M120200P911L

2500mA

M120250P911L

3000mA

M120300P911L

15V

1500 mA

M150150P911L

2000mA

M150200P911L

2500mA

M150250P911L

24V

1000mA

M240100P911L

1500 mA

M240150P911L

30V

800mA

M300080P911L

1000mA

M300100P911L

1200mA

M300120P911L

1400mA

M300140P911L




Model two:

Input parameters: AC 100-240V (90-264V), 50/60HZ , 1.2A

Output parameters: DC 9-30V, 100-5000mA , 65W Max

Overall dimensions: 114*50*33mm

Safety certification: CCC, CE, KC, FCC, UL, CB, UKCA




The output voltage

Output current

Product number

12V

3000mA

M120300P911G

3500mA

M120350P911G

4000mA

M120400P911G

5000mA

M120500P911G

15V

2400mA

M150240P911G

2500mA

M150250P911G

3000mA

M150300P911G

4000mA

M150400P911G

19V

2000mA

M190200P911G

2100mA

M190210P911G

2630mA

M190263P911G

2500mA

M190250P911G

3420mA

M190342P911G

24V

1500 mA

M240150P911G

1750 mA

M240175P911G

2000mA

M240200P911G

2500mA

M240250P911G




Model three:

Input parameters: AC 100-240V (90-264V), 50/60HZ , 1.5A

Output parameters: DC 9-30V, 10-6000mA , 72W Max

Overall dimensions: 125.5*58*35mm

Safety certification: CCC, CE, KC, FCC, UL, UKCA




The output voltage

Output current

Product number

12V

5500mA

M120550P911

6000mA

M120600P911

18V

4000mA

M180400P911

19V

3750mA

M190375P911

24V

2500mA

M240250P911

3000mA

M240300P911
