◼Product parameters
● Product model: M120100W111C
●Output voltage: 5V-24V DC
●Output current: 10-2000mA
● Working frequency: 50-60Hz
●Input voltage: 100-240V AC

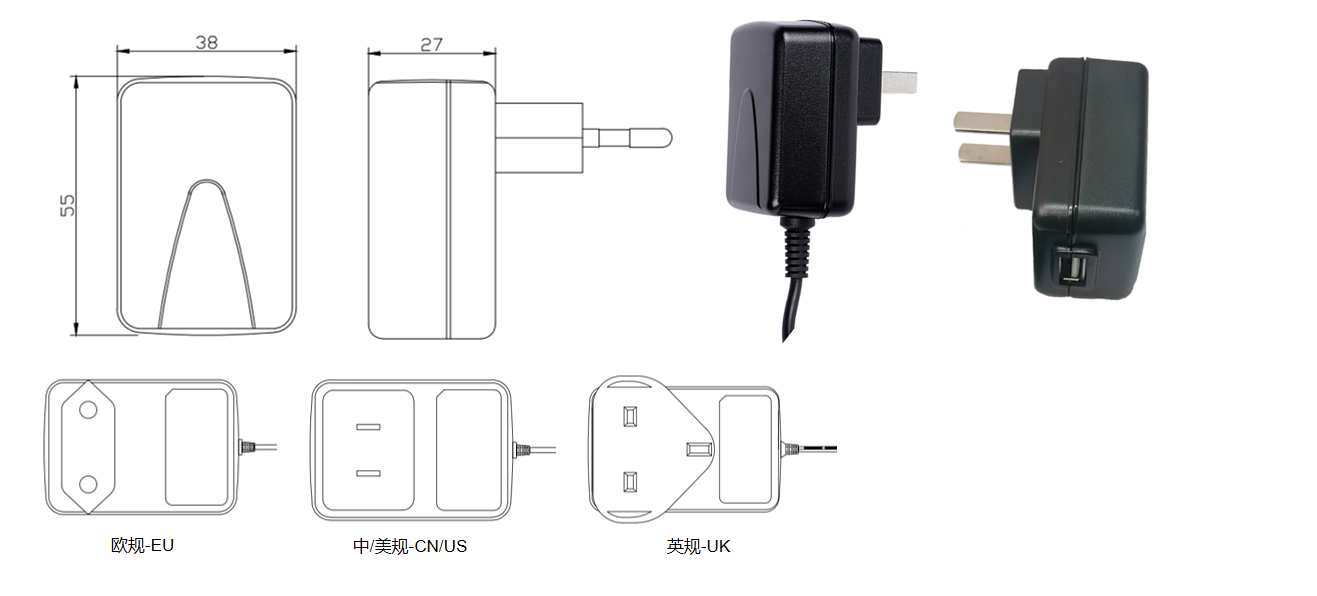

● Product size: 55*38*27mm
● Work efficiency: Meet DOE VI, ERP VI
●Connection socket: EU European standard, US American standard, CN Chinese standard
● This power adapter has passed CCC, CE, FCC, KC, UL, CB, UKCA
● Classic output:
The output voltage | Output current | Product number | Pin specifications |
5V | 2000mA | M050200W311C | Chinese regulations-CN |
M050200W111C | American Standard -US | ||
M050200W211C | European regulations -EU | ||
12V | 1000mA | M120100W311U1 | Chinese regulations -CN |
M120100W111U1 | American Standard -US | ||
M120100W211U1 | European regulations -EU |
◼Product reliability
● Insulation resistance: DC500V input between AC input and DC output, minimum insulation resistance 100MΩ
● Protection: Set up overcurrent, overvoltage, short circuit, and overtemperature protection circuits
● ESD: Contact discharge ±2KV, air discharge ±4KV, no damage to the product
● Aging: Test the product with rated input and rated load current for 4 hours, and the product is not damaged.
● High voltage: All products have passed high voltage testing before leaving the factory.
● Temperature rise: Test the surface temperature with rated input and rated load. The temperature rise of the shell surface meets safety standards.
● Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test
● Drop test: Dropped from 1 meter onto a wooden board, once on each side. The product has no mechanical damage or electrical performance damage.
● MTBF (life): When tested at full load at room temperature of 25°C, the product life is more than 50,000 hours
●Lightning strike: within ±1KV, the product is not damaged
● Advantages: The shell is made of PC fireproof material, selected brand components, the production process adopts industry-leading technology, professionalism penetrates into every detail, fully complies with ROHS environmental standards, has good performance and high temperature resistance
◼Socket selection
◼DC head selection
The space is limited, please contact customer service for more information.
