◼Product parameters

● Product model: M120300W111M

●Output voltage: 12V DC

●Output current: 3000mA

● Working frequency: 50-60Hz

●Input voltage: 180-240V AC (162-264V)

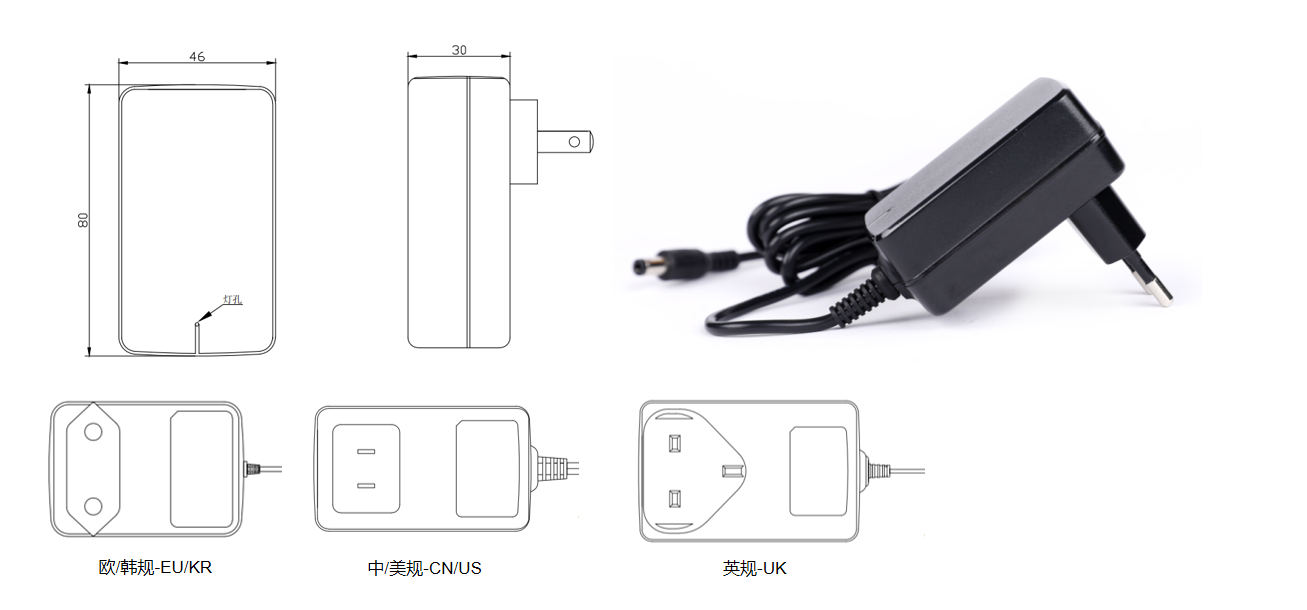

● Product size: 80*46*33mm

● Work efficiency: Meet DOE VI, ERP VI

●Connection socket: EU European standard, KR Korean standard, CN Chinese standard, US American standard, UK British standard

● This power adapter has passed CCC, CE, KC, FCC

◼Product reliability

● Insulation resistance: DC500V input between AC input and DC output, minimum insulation resistance 100MΩ

● Protection: Set up overcurrent, overvoltage, short circuit, and overtemperature protection circuits

● ESD: Contact discharge ±2KV, air discharge ±4KV, no damage to the product

● Aging: Test the product with rated input and rated load current for 4 hours, and the product is not damaged.

● High voltage: All products have passed high voltage testing before leaving the factory.

● Temperature rise: Test the surface temperature with rated input and rated load. The temperature rise of the shell surface meets safety standards.

● Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test

● Drop test: Dropped from 1 meter onto a wooden board, once on each side. The product has no mechanical damage or electrical performance damage.

● MTBF (life): When tested at full load at room temperature of 25°C, the product life is more than 50,000 hours

●Lightning strike: within ±1KV, the product is not damaged

● Advantages: The shell is made of PC fireproof material, selected brand components, the production process adopts industry-leading technology, professionalism penetrates into every detail, fully complies with ROHS environmental standards, has good performance and high temperature resistance

◼Socket selection

◼DC head selection

◼Typical output

Model 1:


Input parameters: AC 100-240V (90-264V), 50/60HZ, 0.6A

Output parameters: DC9-30V, 100-2500mA, 30W Max

Overall dimensions: 65.5*42.5*25mm

Safety certification: CCC, KC, FCC, CE

Model 2:

Input parameters: AC 100- 240V (90-264V), 50/60HZ, 1.0A

Output parameters: DC9-30V, 100-3000mA, 36W Max

Overall dimensions: 65.5*42.5*25mm

Safety certification: CCC, FCC, CE, KC

Model 3:

Input parameters: AC 100-240V (90-264V), 50/60HZ, 1.0A

Output parameters: DC9-30V, 100-3500mA, 42W Max

Output mode: select DC line output

Overall dimensions: 80*46*30mm

Safety certification: CCC, KC, FCC, CE

 The space is limited, please contact customer service for more information.
