24W-36W

◼Product parameters



● Product model: M120200W231

●Output voltage: 9V-15V DC

●Output current: 100-3000mA

● Working frequency: 50-60Hz

●Input voltage: 180-240V AC (162-264V)

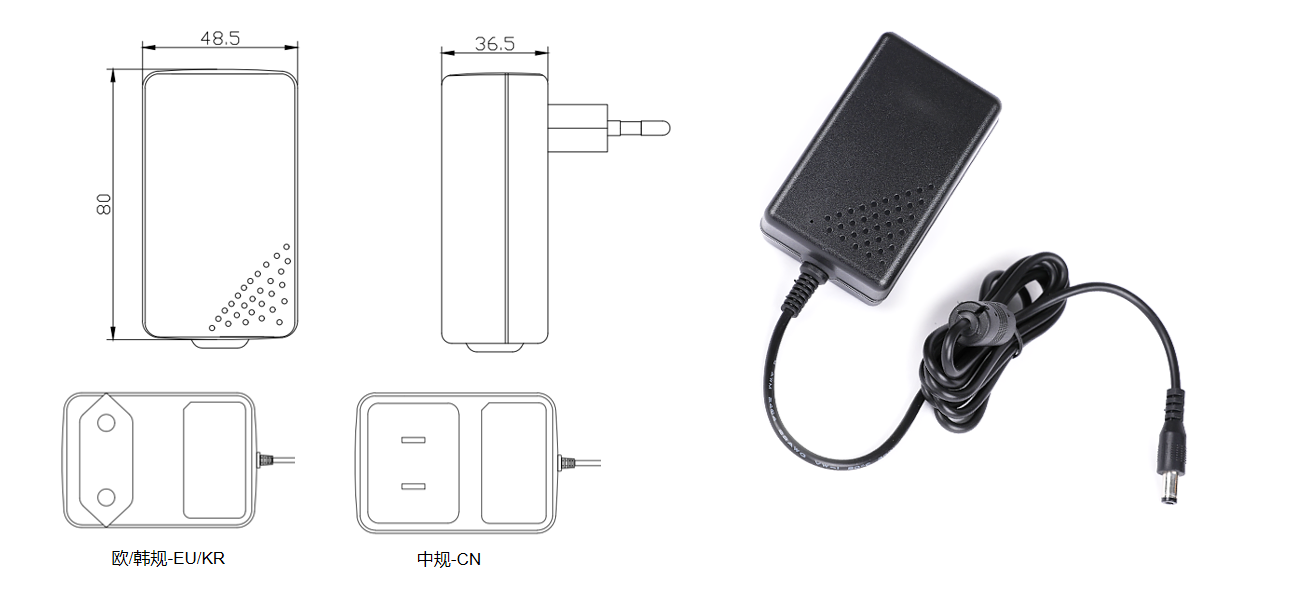

● Product size: 80*48.5*36.5mm

● Work efficiency: Meet DOE VI, ERP VI

●Connection socket: EU European standard, KR Korean standard, CN Chinese standard

● This power adapter has passed CCC, CE, KC

● Classic output:




The output voltage

Output current

Product number

Pin specifications

12V

2000mA

M120200W330

Chinese regulations-CN

M120200W231

European regulations -EU

M120200W831

Korean regulations -KR

2500mA

M120 25 0W330

Chinese regulations -CN

M1202 5 0W231

European regulations -EU

M1202 5 0W831

Korean regulations -KR

3000mA

M120 3 00W330

Chinese regulations -CN

M120 3 00W231

European regulations -EU

M120 3 00W831

Korean regulations -KR


◼Product reliability



● Insulation resistance: DC500V input between AC input and DC output, minimum insulation resistance 100MΩ

● Protection: Set up overcurrent, overvoltage, short circuit, and overtemperature protection circuits

● ESD: Contact discharge ±2KV, air discharge ±4KV, no damage to the product

● Aging: Test the product with rated input and rated load current for 4 hours, and the product is not damaged.

● High voltage: All products have passed high voltage testing before leaving the factory.

● Temperature rise: Test the surface temperature with rated input and rated load. The temperature rise of the shell surface meets safety standards.

● Wire swing test: Wire pull load 200g, bend ±60°, 10 times/min, 1000 times, the wire is not damaged after the test

● Drop test: Dropped from 1 meter onto a wooden board, once on each side. The product has no mechanical damage or electrical performance damage.

● MTBF (life): When tested at full load at room temperature of 25°C, the product life is more than 50,000 hours

●Lightning strike: within ±1KV, the product is not damaged

● Advantages: The shell is made of PC fireproof material, selected brand components, the production process adopts industry-leading technology, professionalism penetrates into every detail, fully complies with ROHS environmental standards, has good performance and high temperature resistance




◼Socket selection

24W-36W(Figure 1)

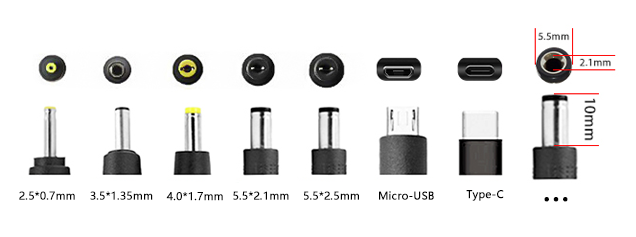

◼DC head selection

72W-150W(Figure 1)

 The space is limited, please contact customer service for more information.
